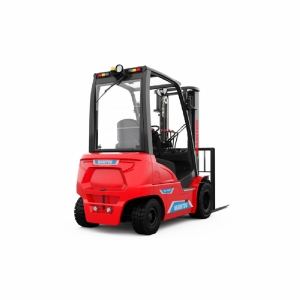

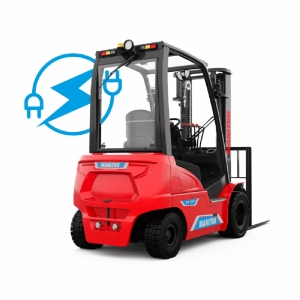

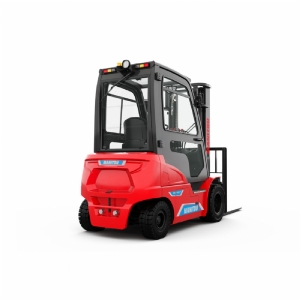

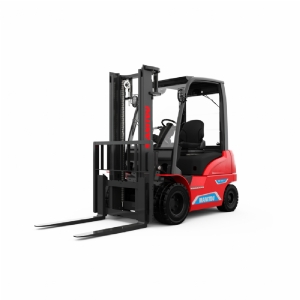

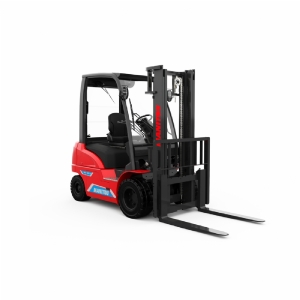

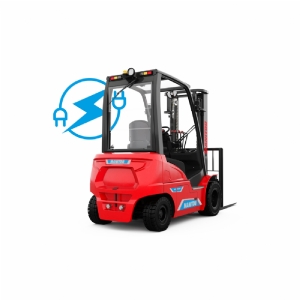

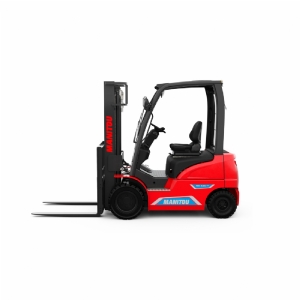

ME 425 LD LIFT
6500 MM.
Max. lifting height
2500 KG
Max. Lifting Capacity
2035 MM
Turning radius
500 MM
Load center of gravity
ME 425 LD LIFT, günlük 2 veya 3 saatlik kullanım için mükemmel bir taşıma çözümüdür ve bu nedenle Manitou'nun en uygun maliyetli taşıma çözümüdür. Çok yönlü lityum akü ile çalışan bu forklift, güvenlik, konfor veya görüş alanından ödün vermeden size tam olarak doğru miktarda özerklik ve performans sunar.
Review the Document SEE ATTACHMENTSCapacities
| ME 425 LD LIFT | |
|---|---|
| Power source | Electrical - Lithium |
| Operator type | Seated |
| Max. capacity | 2500 KG |
| Load center of gravity | 500 MM |
| Wheelbase | 1520 MM |
Weights
| ME 425 LD LIFT | |
|---|---|
| Standard mast reference of the machine | FVD 30 |
| Service weight | 3830 KG |
| Weight on front axle (laden) / rear axle (laden) | 5575 KG / 755 KG |
| Weight on front axle (Unladen) / rear axle (Unladen) | 1560 KG / 2270 KG |
Wheels
| ME 425 LD LIFT | |
|---|---|
| Tires type | Solid tires |
| Number of front wheels / rear wheels | 2/2 |
| Number of drive wheels | 2 |
| Front wheel gauge | 1046 MM |
| Rear wheel gauge | 960 MM |
Dimensions
| ME 425 LD LIFT | |
|---|---|
| Height of overhead guard (cabin) | 2186 MM |
| Seat height/stand height | 1155 MM |
| Overall length | 3357 MM |
| Length to face of forks | 2287 MM |
| Overall width | 1271 MM |
| Forks section / width / length | 40/122/1070 MM |
| Ground clearance below mast | 120 MM |
| Ground clearance at centre of wheelbase | 115 MM |
| Turning radius | 2035 MM |
Performances
| ME 425 LD LIFT | |
|---|---|
| Travel speed (laden / unladen) | 16 km/h / 17 km/h |
| Lifting speed (laden / unladen) | 0.35 m/s / 0.46 m/s |
| Lowering speed (laden / unladen) | 0.51 m/s / 0.54 m/s |
| Drawbar pull (Laden / Unladen) | 6500 daN |
| Gradeability (laden / unladen) | 10 % / 18 % |
| Service brake | Hydraulic |
| Transmission Type | - |
| Motor Rating | 17 kW |
| Battery voltage / capacity | 76.80 V / 230 Ah |
| Hydraulic pressure | 160 BAR |
| Oil flow rate | 25 l/min |
