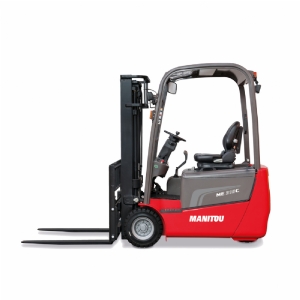

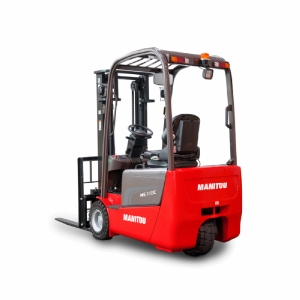

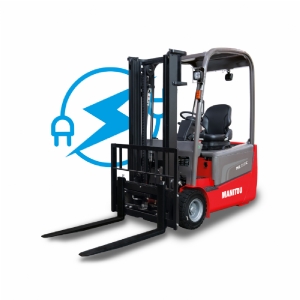

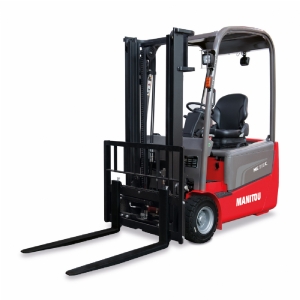

ME 315 C

ME 315 C

---------- Max. lifting height
1500 KG Max. Lifting Capacity
1510 MM Turning radius
500 MM Load center of gravity

Manitou elektrikli forkliftler ile kaldırma operasyonlarınızı optimize edin. Çeşitli yük ve kaldırma kapasitelerdeki Manitou elektrikli forkliftler ile işinizi kolaylaştırın. Özenle seçilmiş bileşenlerle tasarlanan bu makinalar, tüm uygulamalarınızda size verimli bir şekilde yardımcı olacaktır. Kamyon yükleme/boşaltma, stoklama, mal taşıma... Üretkenliği artırmak için birçok standart ve opsiyonel donanımdan yararlanın!

Review the Document SEE ATTACHMENTS
Capacities
 ME 315 C
Power sourceElectrical - Lead
Operator typeSeated
Max. capacity1500 KG
Load center of gravity500 MM
Wheelbase1220 MM
Weights
 ME 315 C
Standard mast reference of the machine-
Service weight3000 KG
Weight on front axle (laden) / rear axle (laden)3930 KG / 570 KG
Weight on front axle (Unladen) / rear axle (Unladen)1370 KG / 1630 KG
Wheels
 ME 315 C
Tires typeSolid tires
Number of front wheels / rear wheels2/1
Number of drive wheels1
Front wheel gauge835 MM
Rear wheel gauge-
Dimensions
 ME 315 C
Height of overhead guard (cabin) 2105 MM
Seat height/stand height1020 MM
Overall length3015 MM
Length to face of forks 1865 MM
Overall width990 MM
Forks section / width / length 35/100/1150 MM
Ground clearance below mast 100 MM
Ground clearance at centre of wheelbase100 MM
Turning radius1510 MM
Performances
 ME 315 C
Travel speed (laden / unladen)9.50 km/h-10.50 km/h
Lifting speed (laden / unladen)0.22 m/s-0.34 m/s
Lowering speed (laden / unladen) 0.58 m/s-0.48 m/s
Drawbar pull (Laden / Unladen) 500 daN / 530 daN
Gradeability (laden / unladen) 7 % / 9 %
Service brakeHydraulic
Transmission Type-
Motor Rating4 kW
Battery voltage / capacity24 V / 840 Ah
Hydraulic pressure145 BAR
Oil flow rate16 l/min
Engine
 ME 315 C
Brand-
Engine Power-
Rated speed-
Number of cylinders-
