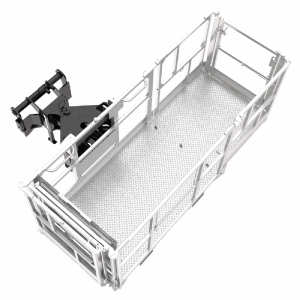

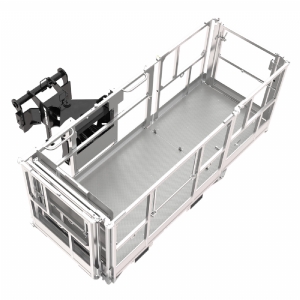

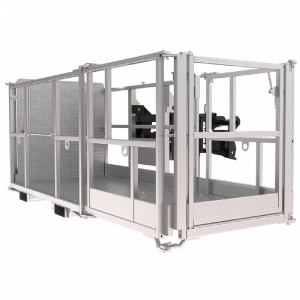

Fast Opening Platform
from 365 kg to 1000 kg
Capacity including people
3
Number of people
from 670 kg to 1030 kg
Overall weight
from 1300 mm to 1312 mm
Overall height
- Capacity 365/1000/700 kg / 805/2205/1544 lb including 3 people.
- Unfolded working width 4,4 m / 14 ft
- Slewing platform +/- 90°on both sides.
- Legally approved for 3 persons.
- Accessible from 3 sides (2x Side + 1 front).
- version "D": right access with side door.
- version "DD": front and right access with side door.
- Overload sensor.
- Fork sleeves: 238 mm x 100 mm / 9 in x 4 in.
